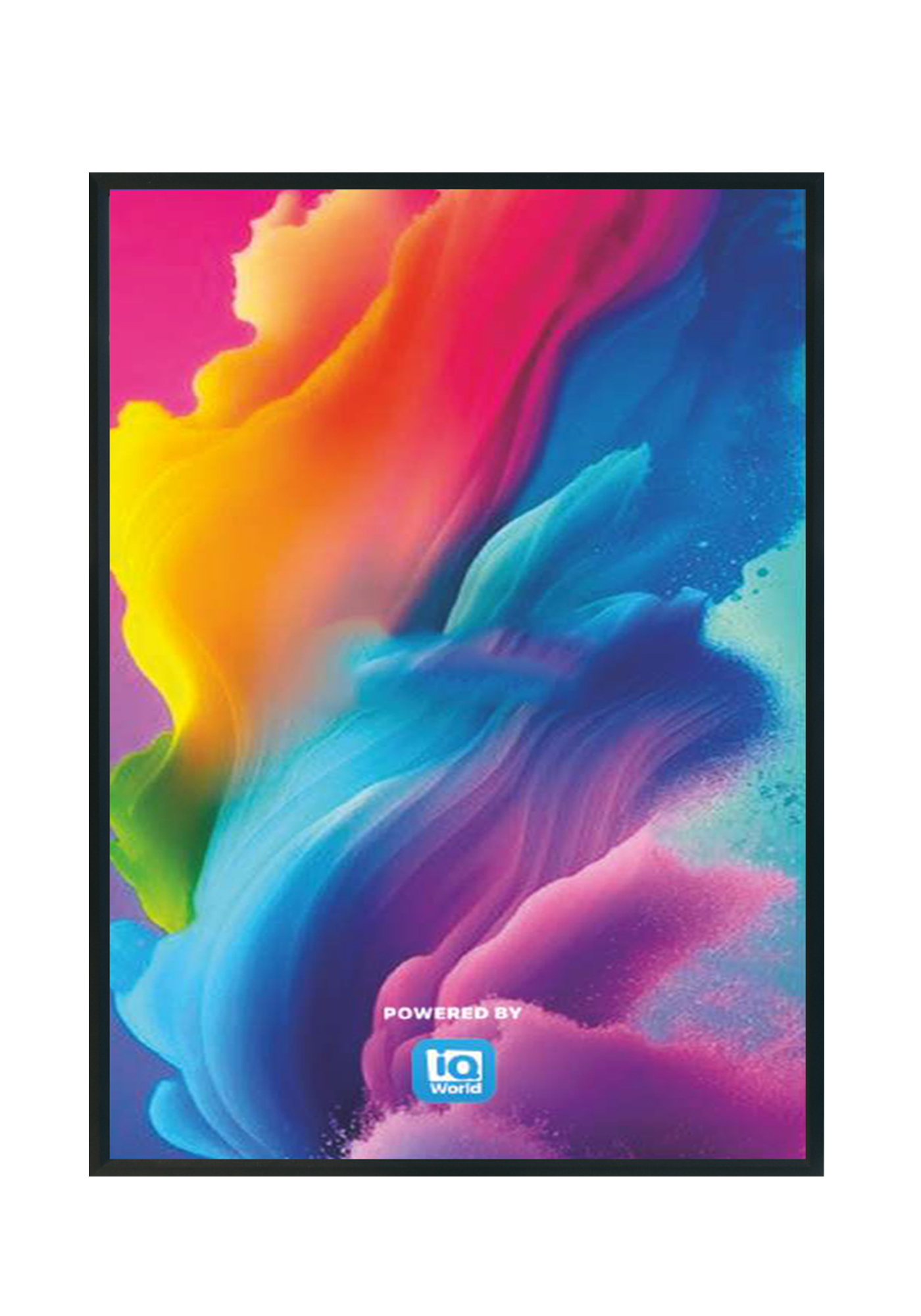

Our range of Indoor and Outdoor LED Wall displays offers pixel pitches from 1.5mm to 10mm, ensuring high-resolution visuals for any environment. With brightness options up to 6000 nits, adjustable color temperatures, and wide viewing angles, these displays are perfect for vibrant, large-scale digital signage solutions.
| Particulars | P1.5 | P1.8 | P2 | P2.5 | P3 | P4 | P4 (Outdoor) | P6 (Outdoor) | P8 (Outdoor) | P10 (Outdoor) |
|---|---|---|---|---|---|---|---|---|---|---|
| Pitch (mm) | 1.538 | 1.839 | 2 | 2.5 | 3 | 4 | 4 | 6 | 8 | 10 |
| Module Resolution (W*H) | 208x104 | 174x87 | 160x80 | 128x64 | 64x64 | 80x40 | 80x40 | 32x32 | 40x20 | 32x16 |
| Module Size (mm) | 320x160x16.5 | 320x160x16.5 | 320x160x15 | 320x160x15 | 192x192x18 | 320x160x15 | 320x160x18 | 192x192x18 | 320x160x18 | 320x160x18 |
| Pixel Density (Per sqm) | 350000 | 295690 | 250000 | 160000 | 111111 | 62500 | 62500 | 27778 | 15625 | 10000 |
| Brightness (nits) | 1500-2500 | 1500-2500 | 1500-2500 | 1500-2500 | 1500-2500 | 1500-2500 | 5000-6000 | 5000-5500 | 5000-6000 | 5000-6000 |
| Color Temperature (K) | 6500K (1000K-9500K Adjustable) | 3000-10000 Adjustable | ||||||||
| Horizontal Viewing Angle (°) | 160 | |||||||||
| Vertical Viewing Angle (°) | 140 | |||||||||
| Max Power Consumption (w/m²) | 488 | 488 | 488 | 488 | 488 | 488 | 850 | 900 | 800 | 800 |
